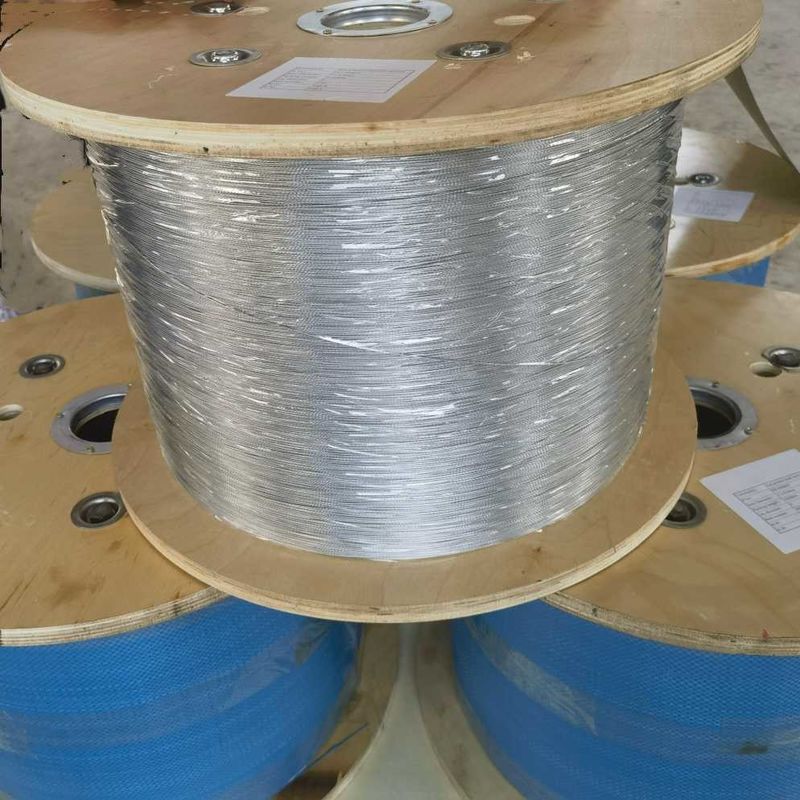

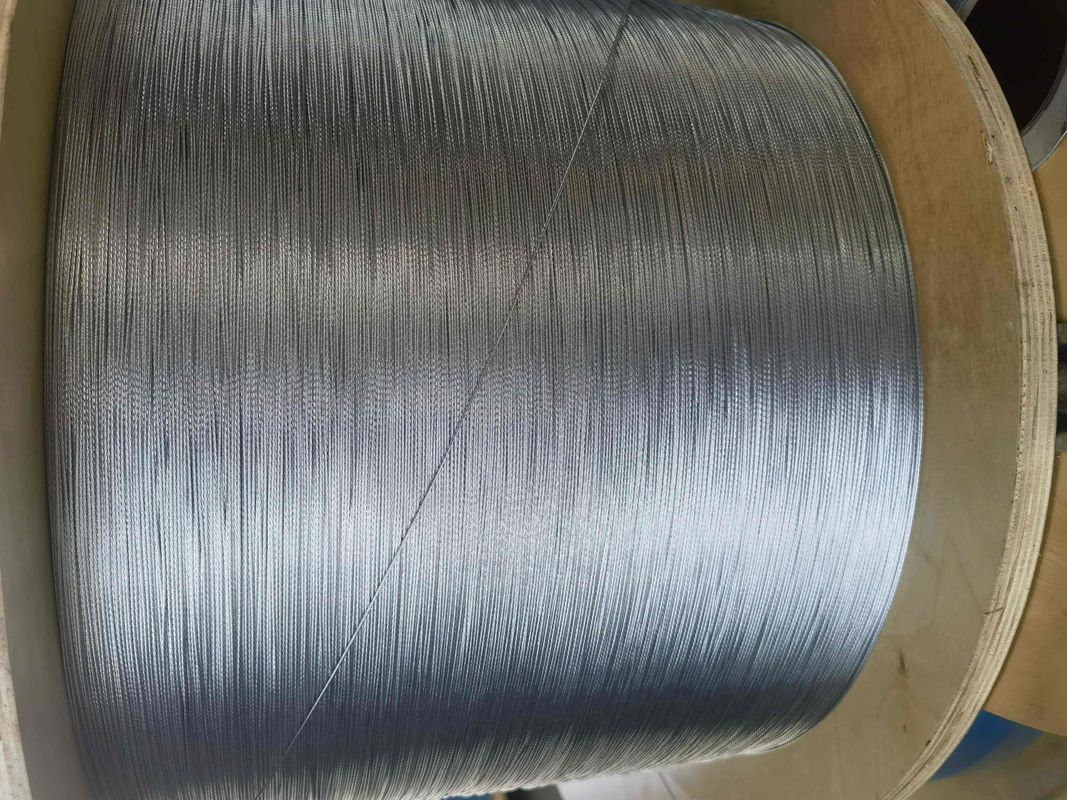

Strand baja galvanis untuk kabel serat optik
3Karakteristik
| Struktur | Diameter nominal kawat baja tunggal (mm) | Diameter nominal kawat bergelombang (mm) | Kekuatan tarik minimal dari kawat baja tunggal (MPa) | Min. kekuatan pecah benang baja (kN) | Modulus elastis untaian baja (Gpa) | Min. berat lapisan seng (g/m)2) |
1X7 |
0.33 | 1.00 | 1770 | 0.98 | ≥ 170 |
5 |
| 0.40 | 1.20 | 1770 | 1.43 | 5 | ||
| 0.60 | 1.80 | 1670 | 3.04 | 5 | ||
| 0.80 | 2.40 | 1670 | 5.41 | 10 | ||
| 0.90 | 2.70 | 1670 | 6.84 | 10 | ||
| 1.00 | 3.00 | 1570 | 7.99 | 20 | ||
| 1.20 | 3.60 | 1570 | 11.44 | 20 | ||
| 1.40 | 4.20 | 1570 | 15.57 | 20 | ||
| 1.60 | 4.80 | 1470 | 19.02 | 20 | ||
| 1.80 | 5.40 | 1470 | 24.09 | 20 | ||
| 2.00 | 6.00 | 1370 | 27.72 | 20 | ||
| Catatan: Selain spesifikasi dalam tabel di atas, kami juga dapat menyediakan benang baja galvanis dengan spesifikasi lain dan kandungan seng yang berbeda sesuai dengan kebutuhan pelanggan. | ||||||
| Nama Kode | Bagian | Penarikan | Diameter keseluruhan | Berat konduktor | Mematahkan Beban | ||
| mm2 | Tidak, tidak. | Φmm | mm | kg/km | kN | ||
| Kelas 1150 | |||||||
| 7/24 SWG | 1.72 | 7 | 0.56 | 1.7 | 14 | 1.98 | |
| 7/22 SWG | 2.77 | 7 | 0.71 | 2.1 | 28 | 3.19 | |
| 7/21 SWG | 3.97 | 7 | 0.85 | 2.6 | 31 | 4.57 | |
| 7/20 SWG | 4.45 | 7 | 0.90 | 2.7 | 35 | 5.12 | |
| 7/19 SWG | 5.50 | 7 | 1.00 | 3.0 | 43 | 6.32 | |
| 7/18 SWG | 8.59 | 7 | 1.25 | 3.8 | 67 | 9.88 | |
| 7/17 SWG | 10.78 | 7 | 1.40 | 4.2 | 84 | 12.35 | |
| 7/16 SWG | 14.07 | 7 | 1.60 | 4.8 | 110 | 16.20 | |
| 7/15 SWG | 17.81 | 7 | 1.80 | 5.4 | 140 | 20.50 | |
| 7/14 SWG | 21.99 | 7 | 2.00 | 6.0 | 170 | 25.30 | |
| 7/13 SWG | 30.62 | 7 | 2.36 | 7.1 | 240 | 35.20 | |
| 7/12 SWG | 38.61 | 7 | 2.65 | 8.0 | 300 | 44.40 | |
| 7/11 SWG | 49.48 | 7 | 3.00 | 9.0 | 392 | 56.90 | |
| - | 54.55 | 7 | 3.15 | 9.5 | 430 | 62.75 | |
| 7/10 SWG | 58.07 | 7 | 3.25 | 9.8 | 460 | 66.80 | |
| 7/9 SWG | 73.24 | 7 | 3.65 | 11.0 | 570 | 84.20 | |
| 7/8 SWG | 87.96 | 7 | 4.00 | 12.0 | 690 | 101.00 | |
| 7/7 SWG | 99.30 | 7 | 4.25 | 12.8 | 780 | 114.00 | |
| 7/6 SWG | 124.04 | 7 | 4.75 | 14.0 | 970 | 142.70 | |
| 19/19 SWG | 14.92 | 19 | 1.00 | 5.0 | 120 | 17.16 | |
| 19/18 SWG | 23.32 | 19 | 1.25 | 6.3 | 180 | 26.81 | |
| 19/17 SWG | 29.25 | 19 | 1.40 | 7.0 | 230 | 33.64 | |
| 19/16 SWG | 38.20 | 19 | 1.60 | 8.0 | 300 | 43.93 | |
| 19/14 SWG | 59.69 | 19 | 2.00 | 10.0 | 470 | 68.64 | |
| - | 93.27 | 19 | 2.50 | 12.5 | 730 | 107.30 | |
| 19/11 SWG | 134.30 | 19 | 3.00 | 15.0 | 1050 | 154.50 | |
| - | 188.06 | 19 | 3.55 | 17.8 | 1470 | 216.30 | |
| 19/8 SWG | 238.76 | 19 | 4.00 | 20.0 | 1870 | 274.60 | |
| - | 336.69 | 19 | 4.75 | 23.8 | 2630 | 387.20 | |
